FENYX: One interface for every traffic controller
Designing configuration software where a wrong value has real consequences
Partners:
TMC Durham &
Waterloo Region
My role:
Research & Design(Solo),
Frontend Devlopment
Methods:
Field Observations,
Interviews
OVERVIEW
THE SITUATION

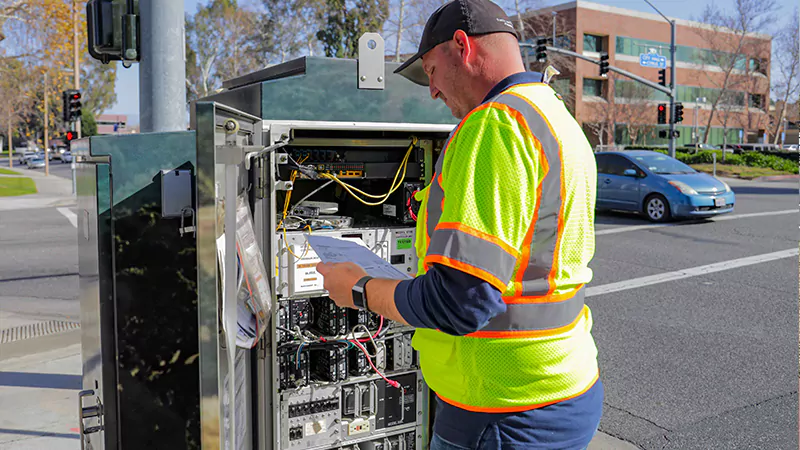

Every traffic controller brand ships with its own software, vocabulary, and ways to get a setting wrong. In smaller municipalities, that meant learning multiple proprietary tools or working from legacy terminals and paper logs.
Fortran wanted one interface that could configure any controller and remain affordable for any budget. I owned its design from the first workshop to the components engineers shipped.
UNDERSTANDING THE PROBLEM
The brief and what the sessions turned it into
Fortran’s brief was focused: a portable web app for small and mid-sized municipalities that connects to the controller inside each street cabinet and uploads timing data sent from the traffic operations center.
Over more than ten sessions with product leadership, TMC stakeholders, and operators, the ask grew. People also wanted to set up a brand-new intersection, move the configuration from a dead controller to a replacement, and handle large volumes of configuration data, all in something easy enough to use while standing at a cabinet.
That changed the problem. A simple uploader would have covered the easy part of the job. What people described was a capable configuration tool that had to stay simple. That tension shaped every decision below.
FRAMING
Three principles guided the work:
01
One mental model across every vendor
An operator who learns one module has learned them all. This drove the modular framework and the shared tools in the app bar.
02
Design for the field, not the desk
Setup and bulk transfer touch live signals, so they get guidance and guardrails. Routine actions stay one step away. This drove the guided setup and the transfer safeguards.
03
Make the risky thing deliberate and the common thing fast
Setup and bulk transfer touch live signals, so they get guidance and guardrails. Routine actions stay one step away. This drove the guided setup and the transfer safeguards.
CONCEPT VALIDATION
Before committing to a full design, I built an early-stage prototype and tested it with traffic analysts and field technicians. The question was simple: would operators accept one interface controlling controllers from different vendors, and could they complete core tasks like timing configuration and data transfer?
It confirmed the approach, several operators doubted a single interface could work across every controller until they used it. This was also my first test of whether the design held up outside Figma. Watching operators use a working interface gave me feedback that internal review couldn’t. I then took the validated direction to leadership and municipal stakeholders, and later presented it at ITS Canada
The HARDEST PART
abstracting across controllers
Each module (Controller Profile, Preemption, Phase Times, Phase Options) represented a separate subject area. I studied NTCIP standards and controller behaviour, then mapped real operator workflows and ranked modules by frequency of use and the friction they caused. That ranking told me where to spend effort first and what to postpone.
I didn’t cut anything permanently. I sequenced it: Preemption and Phase Times got design attention first because they carried the highest friction and error risk. Lower-friction additions, like letting operators attach notes to a controller for later reference, followed once the shared framework was proven.
I built a modular framework with a shared skeleton (navigation, layout, states, errors, and rollback) and module-specific logic inside it, so a pattern this simple could sit next to Preemption’s complexity without either one breaking the system.
KEY DECISIONS
HIGH FIDELITY HANDOFF
Final design
and build
I built the theme file and all the UI components in React, TypeScript, Storybook, and MUI. Building helped me validate the designs faster and make changes accordingly. This hands-on approach not only minimized developer handoff friction but also accelerated the overall development timeline, driving the project toward successful delivery.
LEARNINGS
The FENYX app achieved exceptional results, redefining user expectations while maintaining simplicity and usability across a range of controllers.
Winning moments
92%
Overall Task Success Rate, with minimal to no guidance.
3.2 Min
Average Task Completion Time per task
Overall task success rate: 92% of assigned tasks were completed successfully by operators who participated in testing, with minimal to no guidance.
Average task completion time: 3.2 minutes per task. All seven field operators who participated completed tasks efficiently, demonstrating the app’s ease of use.
Unanimously positive user feedback: Some users were so impressed that they doubted a single interface could work seamlessly for all controllers.
Innovative controller management: The app introduced a fresh and unique way to configure and manage controllers, setting a new standard in the industry.
UX psychology principles: The design combined familiar yet dynamic patterns with slight complexity to engage users through a friendly, intuitive interface, leveraging learned behaviours while encouraging exploration.
LESSONS
Adapting to diverse needs: Addressing a wide spectrum of user requirements reinforced the importance of balancing simplicity with advanced functionality.
Stakeholder collaboration: Managing diverse expectations from engineering, design, and end-users required continuous alignment but drove better results.
Iterate to innovate: embracing iteration and user feedback was critical in refining the design to achieve success across multiple use cases.
Unified experience matters: A single interface for multiple controllers requires innovative thinking but ultimately creates a superior user experience.
